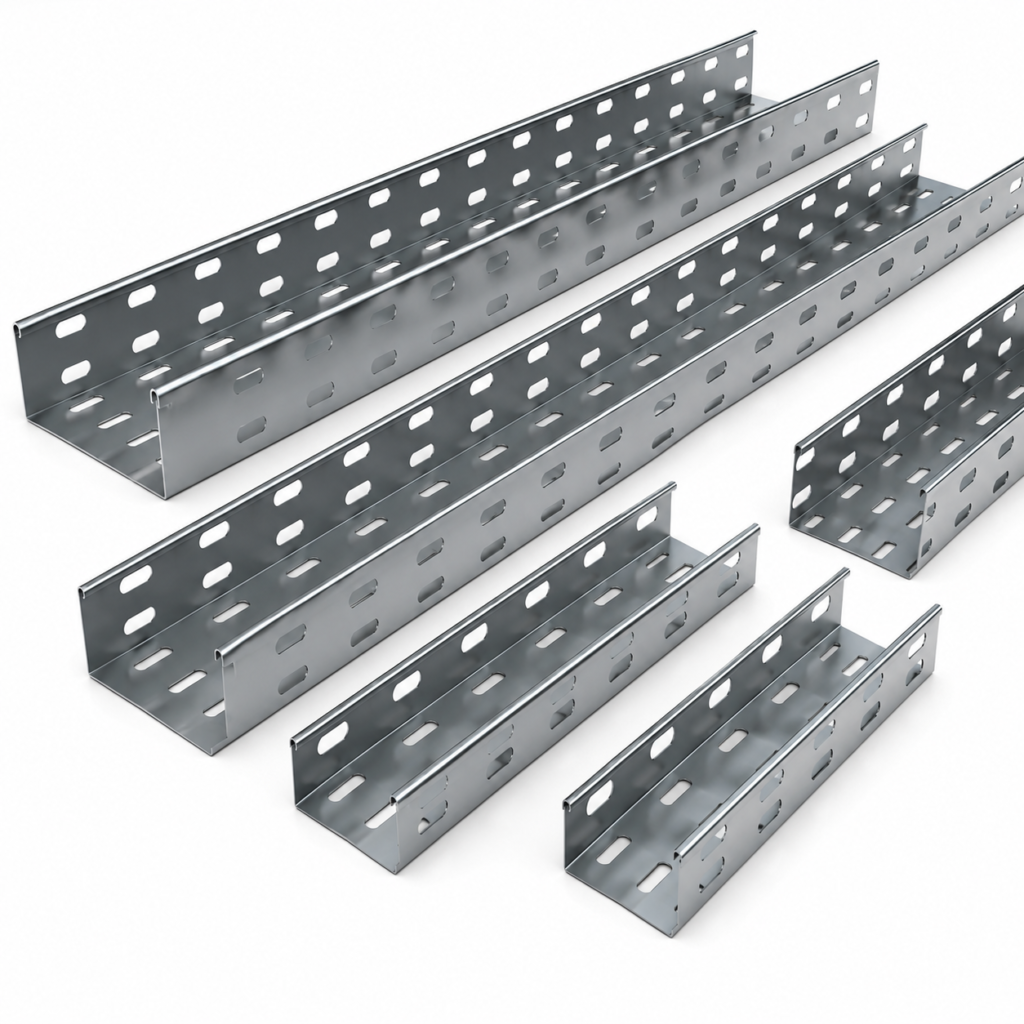

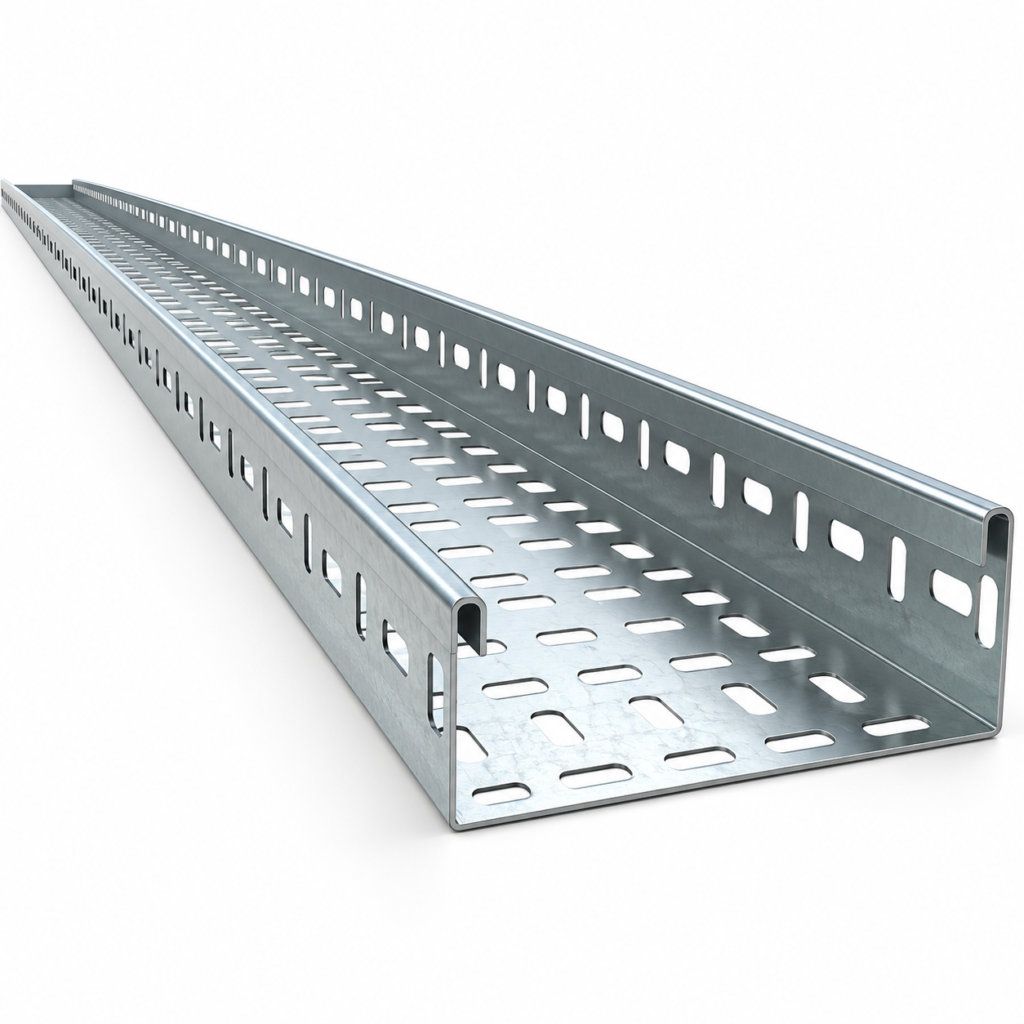

Hot Dip Galvanized (HDG) Perforated Cable Tray
A Hot Dip Galvanized (HDG) Perforated Cable Tray is a robust cable management system manufactured from mild steel and coated with a protective zinc layer through the hot-dip galvanizing process. It provides excellent corrosion resistance, high mechanical strength, and long service life, making it suitable for heavy-duty industrial and outdoor cable installations.
Construction
- Material: Mild Steel (MS)
- Surface Treatment: Hot Dip Galvanization
- Coating Process:Steel components are immersed in molten zinc to form a protective zinc coating
- Finish:Uniform zinc coating with excellent corrosion resistance
- Design: Perforated bottom and side rails for cable support, ventilation, and easy fixing
Standard Thickness
- 1.5 mm
- 2.0 mm
- 2.5 mm
- 3.0 mm
- 4.0 mm
- (Thickness can be selected according to cable weight and installation requirements.)
Standard Sizes
| Width | Height | Length |
|---|---|---|
| 50 mm | 50 mm | 2.5 m / 3 m |
| 75 mm | 50 mm | 2.5 m / 3 m |
| 100 mm | 50 mm | 2.5 m / 3 m |
| 150 mm | 50 mm / 75 mm | 2.5 m / 3 m |
| 200 mm | 50 mm / 75 mm | 2.5 m / 3 m |
| 300 mm | 50 mm / 75 mm / 100 mm | 2.5 m / 3 m |
| 450 mm | 75 mm / 100 mm | 2.5 m / 3 m |
| 600 mm | 100 mm | 2.5 m / 3 m |
Hot Dip Galvanizing Specifications
- Zinc Coating:Typically 450 g/m² or as per project specification
- Galvanizing Standard:Approximately 45–85 microns (depending on steel thickness)
- Coating Thickness:As per relevant galvanizing standards such as ISO 1461
Features
- Excellent corrosion resistance for harsh environments
- High load-bearing capacity
- Suitable for indoor and outdoor installations
- Long service life with minimal maintenance
- Excellent mechanical strength
- Good ventilation prevents cable overheating
- Easy cable installation and inspection
- Compatible with various cable tray accessories
Accessories
- Straight couplers and splice plates
- Horizontal bends
- Vertical bends
- Tees and crosses
- Reducers
- Support brackets
- Hangers and clamps
- Cover plates
- Fasteners
Applications
- Power generation plants
- Industrial facilities
- Oil & gas facilities
- Chemical industries
- Infrastructure projects
- Data centers
- Railways and metro projects
- Solar power projects
- Commercial buildings
- Outdoor cable routing systems
Advantages
- Superior protection against rust and corrosion.
- Suitable for aggressive environmental conditions.
- Strong construction supports heavy cable loads.
- Longer life compared to pre-galvanized trays.
- Low maintenance requirement.
- Reliable performance in outdoor and industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Mild Steel |
| Finish | Hot Dip Galvanized |
| Width | 50 mm to 600 mm (Standard) |
| Height | 50 mm to 100 mm (Standard) |
| Length | 2.5 m / 3 m |
| Thickness | 1.5 mm to 4.0 mm |
| Zinc Coating | As per ISO 1461 / Project Requirement |
Why Choose HDG Perforated Cable Tray?
Hot Dip Galvanized Perforated Cable Trays provide a durable and reliable cable support solution where resistance to moisture, chemicals, and harsh weather conditions is required. Their strong construction and corrosion-resistant finish make them ideal for industrial, infrastructure, and outdoor electrical installations.
