GI Pre-Galvanized
Ladder Type Cable Tray
Reliable Safety
Low Maintenance
Ideal For All Types Of Structures
Ladder Type Cable Tray

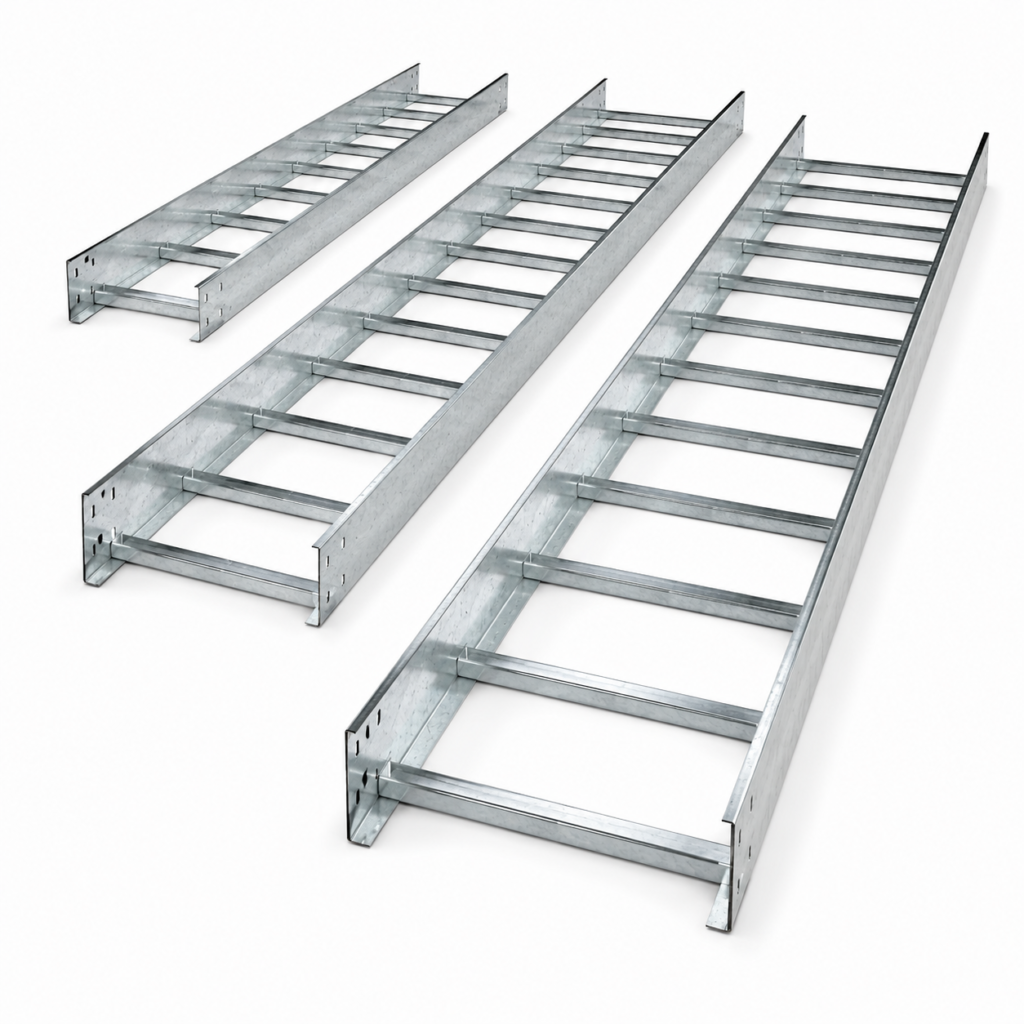

A GI Pre-Galvanized Ladder Type Cable Tray is a cable support system manufactured from pre-galvanized steel sections with parallel side rails and cross rungs. It is designed for heavy-duty cable routing applications, providing strong mechanical support, excellent ventilation, and easy cable installation.
Construction
- Material: Pre-Galvanized Iron (GI) / Pre-Galvanized Steel
- Design: Two longitudinal side rails connected by transverse rungs at regular intervals
- Surface Finish: Zinc-coated surface for corrosion protection
- Manufacturing: Fabricated from pre-galvanized steel sheets/sections before forming
Standard Thickness
- Side rail thickness: 1.5 mm to 3.0 mm
- Rung thickness: 1.5 mm to 3.0 mm
Technical Specifications
| Width | Side Height | Length |
|---|---|---|
| 100 mm | 50 mm / 75 mm | 2.5 m / 3 m |
| 150 mm | 50 mm / 75 mm | 2.5 m / 3 m |
| 200 mm | 50 mm / 75 mm / 100 mm | 2.5 m / 3 m |
| 300 mm | 50 mm / 75 mm / 100 mm | 2.5 m / 3 m |
| 450 mm | 75 mm / 100 mm | 2.5 m / 3 m |
| 600 mm | 75 mm / 100 mm | 2.5 m / 3 m |
| 750 mm | 100 mm | 2.5 m / 3 m |
| 900 mm | 100 mm | 2.5 m / 3 m |
Customized sizes are available as per project requirements.
Features
- Strong and rigid construction for heavy cable loads
- Pre-galvanized coating provides corrosion resistance
- Excellent ventilation and heat dissipation
- Suitable for large power cables
- Easy cable laying, inspection, and maintenance
- Lightweight compared to solid cable supports
Accessories
- Straight couplers and splice plates
- Horizontal bends
- Vertical bends
- Tees and crosses
- Reducers
- Support brackets
- Hangers
- Clamps
- Covers
- Fasteners
Applications
- Power plants
- Industrial facilities
- Manufacturing units
- Data centers
- Commercial buildings
- Solar power plants
- Infrastructure projects
- Railway and metro projects
- Telecom installations
- Oil & gas facilities
Advantages
- High load-bearing capacity for heavy cables.
- Open ladder design improves air circulation.
- Easy cable installation and future expansion.
- Economical and durable cable management solution.
- Reduces cable overheating by providing ventilation.
- Suitable for long cable runs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Pre-Galvanized Steel |
| Finish | Zinc Coated |
| Width | 100 mm to 900 mm |
| Height | 50 mm to 100 mm |
| Length | 2.5 m / 3 m |
| Thickness | 1.5 mm to 3.0 mm |
Why Choose GI Pre-Galvanized Ladder Type Cable Tray?
GI Pre-Galvanized Ladder Type Cable Trays provide a strong, economical, and efficient solution for supporting heavy electrical cables. Their open structure, corrosion-resistant finish, and high load capacity make them ideal for industrial, commercial, and infrastructure electrical installations.
