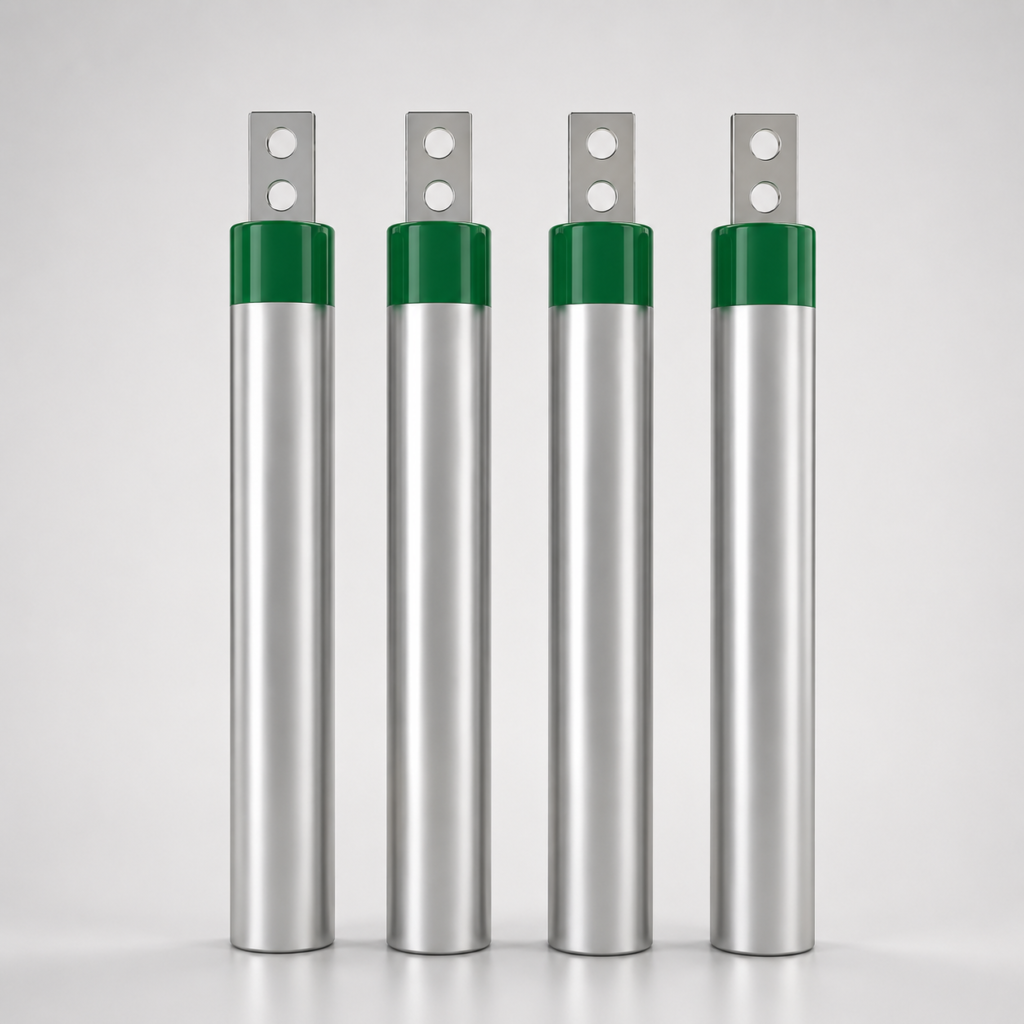

GI (Galvanized Iron)
Earthing Rod
Excellent Conductivity
Corrosion Resistant
Strong & Durable
Long Lasting Performance
Copper Bonded Earthing Electrode
A GI (Galvanized Iron) earthing rod is a grounding electrode made from high-quality mild steel with a hot-dip galvanized zinc coating. It is used to provide a safe path for fault currents and leakage currents to flow into the earth, ensuring the protection of electrical equipment and personnel. GI earthing rods are widely used in residential, commercial, industrial, and utility applications due to their strength, durability, and cost-effectiveness.
Construction
Core Material
Mild steel
Surface Coating
Hot-dip galvanized zinc
Surface Finish
Smooth and corrosion-resistant
Galvanization Thickness
Typically 70–100 microns (or as specified)
Typical Specifications
| Diameter | Length |
|---|---|
| 12 mm | 1 m |
| 12 mm | 2.0 m |
| 16 mm | 1.5 m |
| 16 mm | 2.0 m |
| 16 mm | 3.0 m |
| 20 mm | 2.0 m |
| 20 mm | 3.0 m |
| 25 mm | 2.5 m |
| 25 mm | 3.0 m |
Custom sizes are available to meet specific project requirements.
Features
- Manufactured from high-strength mild steel
- Hot-dip galvanized for enhanced corrosion resistance
- Good electrical conductivity
- High mechanical strength
- Easy to install and maintain
- Long service life under normal soil conditions
- Economical grounding solution
- Material: Mild steel
- Coating: Hot-dip galvanized zinc
- Galvanization Thickness: Typically 70–100 microns
- Tensile Strength: Approximately 400–550 N/mm²
- Corrosion Resistance: Good under normal soil conditions
- Service Life: Typically 15–25 years, depending on soil conditions
Applications
- Residential buildings
- Commercial complexes
- Industrial plants
- Electrical distribution systems
- Street lighting
- Solar power installation
- Agricultural pump installations
- Railway infrastructure
- Lightning protection systems
Advantages
- Cost-effective compared to copper grounding rods.
- High mechanical strength for easy driving into the ground.
- Zinc coating provides protection against rust and corrosion.
- Suitable for most standard earthing applications.
- Low maintenance and reliable performance.
Installation
The GI earthing rod is driven vertically into the ground using suitable driving tools. For lower earth resistance, multiple rods may be connected in parallel and spaced appropriately. The rod is connected to the earthing conductor using galvanized clamps or suitable connectors to ensure a secure and low-resistance electrical connection.
Standards
GI earthing rods are commonly manufactured in accordance with:
- IS 3043 – Code of Practice for Earthing
- IS 2062 – Mild Steel Specification (where applicable)
- IEC 62561 – Lightning Protection System Components
- BS 7430 – Code of Practice for Protective Earthing
GI earthing rods are a reliable and economical choice for grounding systems, offering good corrosion resistance, mechanical strength, and dependable electrical performance for a wide range of electrical installations.
