Early Streamer Emission (ESE)
Lightning Arrester
Reliable Safety
Low Maintenance
Ideal For All Types Of Structures

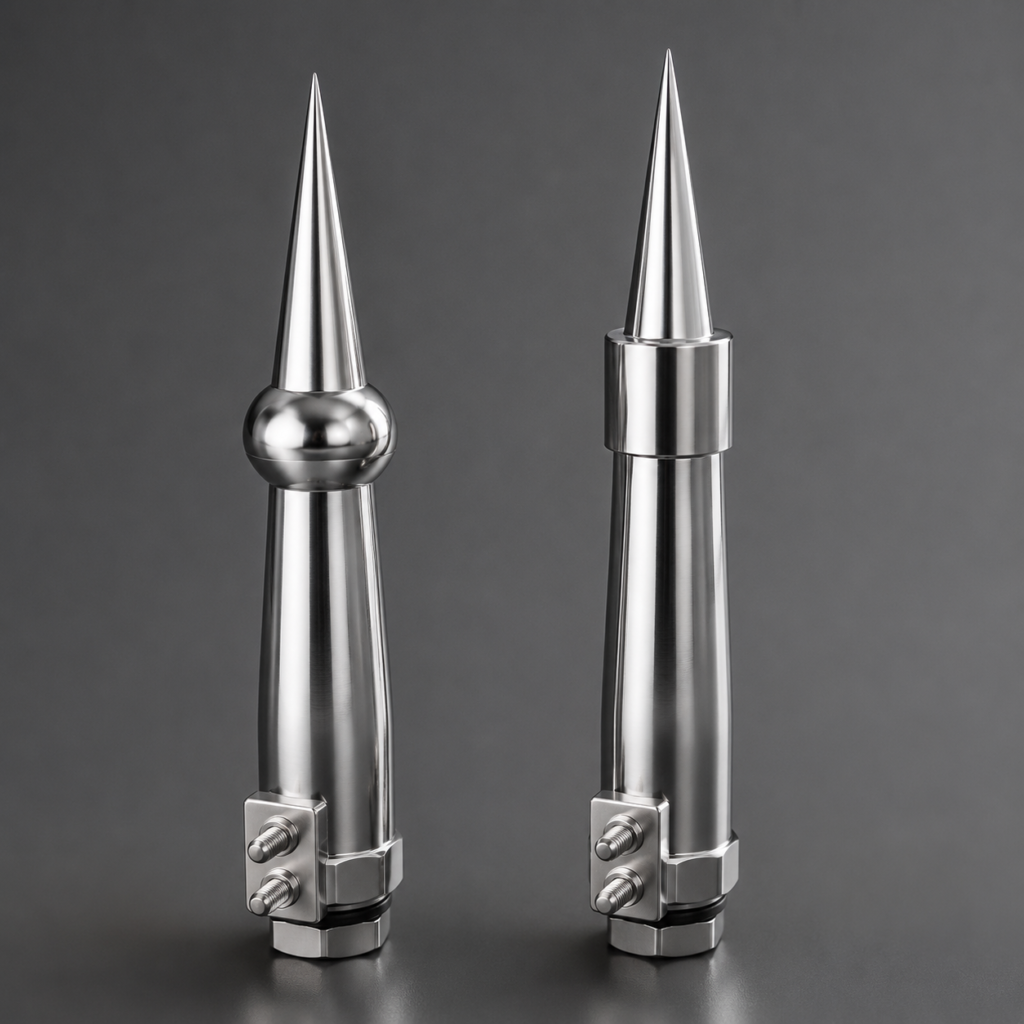

ESE Lightning Arrestor
An Early Streamer Emission (ESE) Lightning Arrestor is an advanced lightning protection device designed to protect buildings, industrial facilities, and critical infrastructure from direct lightning strikes. It emits an upward streamer earlier than conventional air terminals, increasing the protected area and reducing the number of air terminals required.
Our ESE Lightning Arrestors are manufactured using high-quality materials and tested to deliver reliable performance under severe weather conditions.
Available Protection Radius
| Model | Protection Radius* |
|---|---|
| ESE-59 | 59 meters |
| ESE-79 | 79 meters |
| ESE-107 | 107 meters |
Protection radius depends on the installation height and is determined in accordance with the applicable lightning protection standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Technology | Early Streamer Emission (ESE) |
| Body Material | Stainless Steel (SS 304/SS 316) |
| Operating Principle | Early Streamer Emission |
| Installation | Vertical on Mast/Pole |
| Maintenance | Minimal |
| Service Life | 20+ Years |
| Standards | NFC 17-102 / IEC Guidelines (where applicable) |
Features
- Advanced Early Streamer Emission (ESE) technology
- Protection radius up to 107 meters
- Stainless steel corrosion-resistant construction
- Maintenance-free operation
- Long service life
- High mechanical strength
- Suitable for all weather conditions
- Easy installation on masts, poles, and structures
- Compatible with copper, GI, and aluminium down conductors
- Designed for residential, commercial, and industrial applications
Applications
- High-rise buildings
- Industrial plants
- Hospitals
- Educational institutions
- Warehouses
- Telecom towers
- Solar power plants
- Airports
- Oil & Gas facilities
- Power substations
- Hotels and resorts
Advantages
- Large protection coverage reduces the number of lightning protection points.
- Provides reliable protection against direct lightning strikes.
- Durable stainless steel construction ensures long service life.
- Low maintenance and easy installation.
- Cost-effective solution for large facilities.
- Suitable for harsh environmental conditions.
Installation
The ESE Lightning Arrestor should be installed at the highest point of the structure using a suitable support mast. It must be connected to the down conductor and a low-resistance earthing system. Installation should be carried out by qualified personnel in accordance with applicable lightning protection standards and local regulations.
Why Choose Our ESE Lightning Arrestor?
Our ESE Lightning Arrestors are designed to provide dependable lightning protection with wide-area coverage and long-term reliability. Available in 59 m, 79 m, and 107 m protection radius models, they are ideal for safeguarding buildings, industrial facilities, and critical infrastructure while minimizing the number of air terminals required.
Note: The stated protection radii (59 m, 79 m, and 107 m) are based on the manufacturer’s model rating and installation conditions. The actual protected area depends on factors such as installation height and compliance with the applicable design standard (e.g., NFC 17-102).
Request a Quote
Tell us your requirements, and we’ll provide the best solution tailored to your needs.
