Hot Dip Galvanized (HDG)

Ladder Type Cable Tray

Reliable Safety
Low Maintenance
Ideal For All Types Of Structures

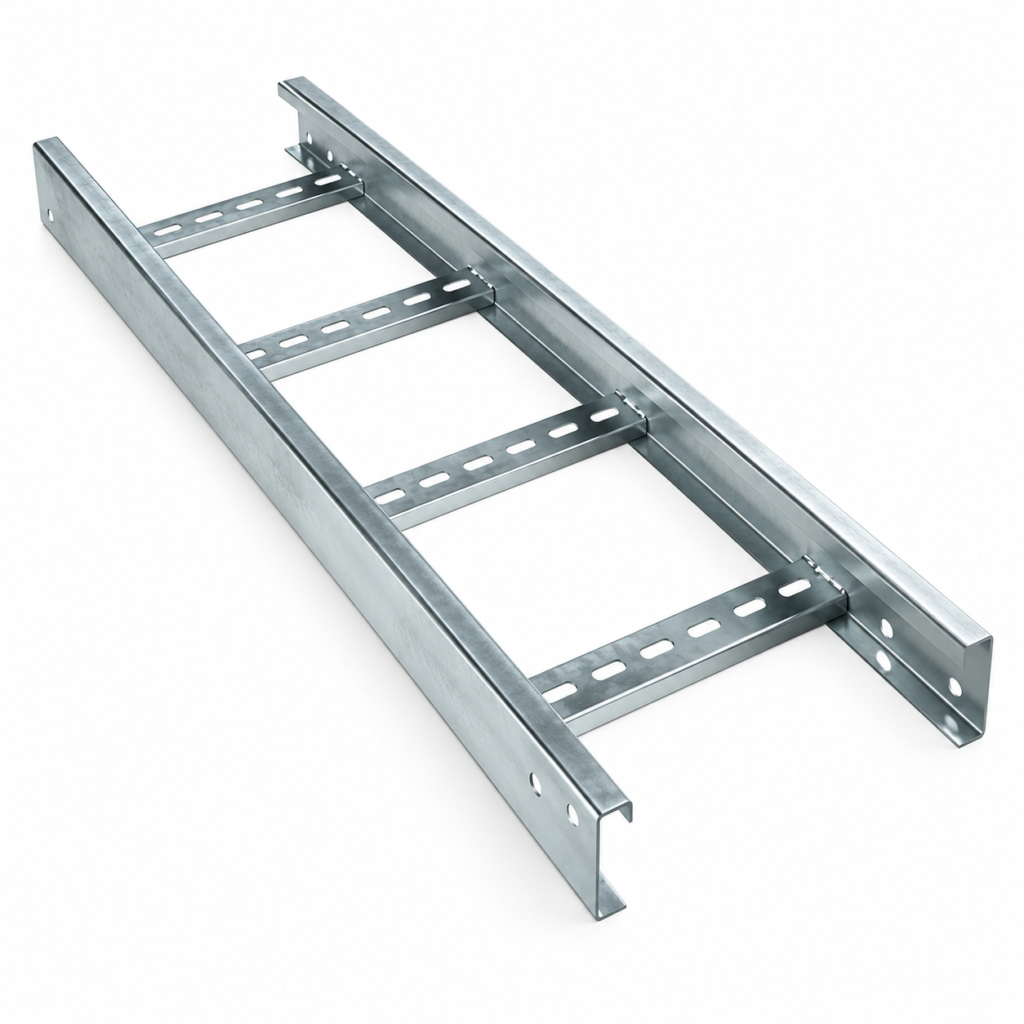

Hot Dip Galvanized (HDG) Ladder Type Cable Tray

A Hot Dip Galvanized Ladder Type Cable Tray is a heavy-duty cable support system manufactured from mild steel and coated with a protective zinc layer through the hot-dip galvanizing process. It consists of two parallel side rails connected by cross rungs, providing excellent cable support, ventilation, and durability for industrial and outdoor applications.

Construction

Standard Thickness

Standard Sizes

WidthSide HeightLength
100 mm50 mm / 75 mm2.5 m / 3 m
150 mm50 mm / 75 mm2.5 m / 3 m
200 mm50 mm / 75 mm / 100 mm2.5 m / 3 m
300 mm50 mm / 75 mm / 100 mm2.5 m / 3 m
450 mm75 mm / 100 mm2.5 m / 3 m
600 mm75 mm / 100 mm2.5 m / 3 m
750 mm100 mm2.5 m / 3 m
900 mm100 mm2.5 m / 3 m
Custom sizes Available as per requirement

Hot Dip Galvanizing Specifications

Features

Accessories

Applications

Advantages

Technical Specifications

ParameterSpecification
MaterialMild Steel
FinishHot Dip Galvanized
Width100 mm to 900 mm
Height50 mm to 100 mm
Length2.5 m / 3 m
Thickness1.5 mm to 3.5 mm
CoatingZinc Coating as per ISO 1461

Why Choose HDG Ladder Type Cable Tray?

Hot Dip Galvanized Ladder Type Cable Trays are designed for demanding environments where strength, durability, and corrosion resistance are essential. They provide a reliable cable support solution for heavy-duty electrical installations in industrial, infrastructure, and outdoor projects.
